| Количество минимального заказа: | 1 |
Оттенок:

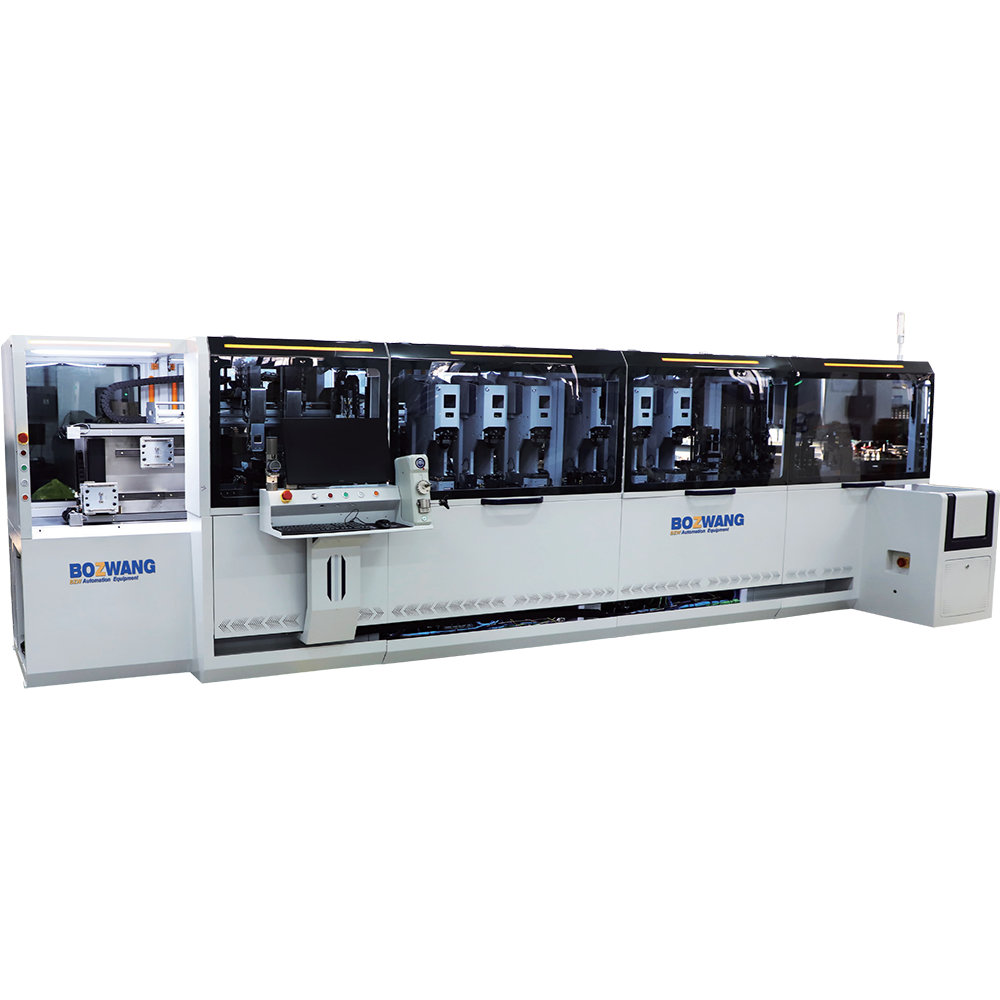

Модель: BZW-9001
марка: Бозванг
Origin: КИТАЙ
сертификация: ISO9001
The file is encrypted. Please fill in the following information to continue accessing it
| Diameter range | 0.22-2.5 mm² | Processing length | Single-ended processing：80-2000mm Double-end processing：200-4000mm Composite processing：600-4000mm |
| Length accuracy |
L<500mm :+1mm
L≥500mm :±（1.0+0.2%*L）mm
|
Peeling length | 0.1-25mm |
| Feeding speed | 0-5M/S(max) |
Number of
threading stations
|
0-6（Can be increased） |
| Number of crimping stations | 3-12（Can be increased） | Crimping force | 25KN |
|
Number of
wires loaded
|
36（MAX:54） | Capability |
1.5-3S/hole
(The process may vary depending on the process)
|
| Power | AC380V 50Hz 10kw | Air supply | 0.5-0.8Mpa |
| Gas consumption | 10-15m³/h | Weight | 3800kg |
| Dimension | 6180*1850*1850mm（9 work stations） | ||
