| Количество минимального заказа: | 1 |
Оттенок:

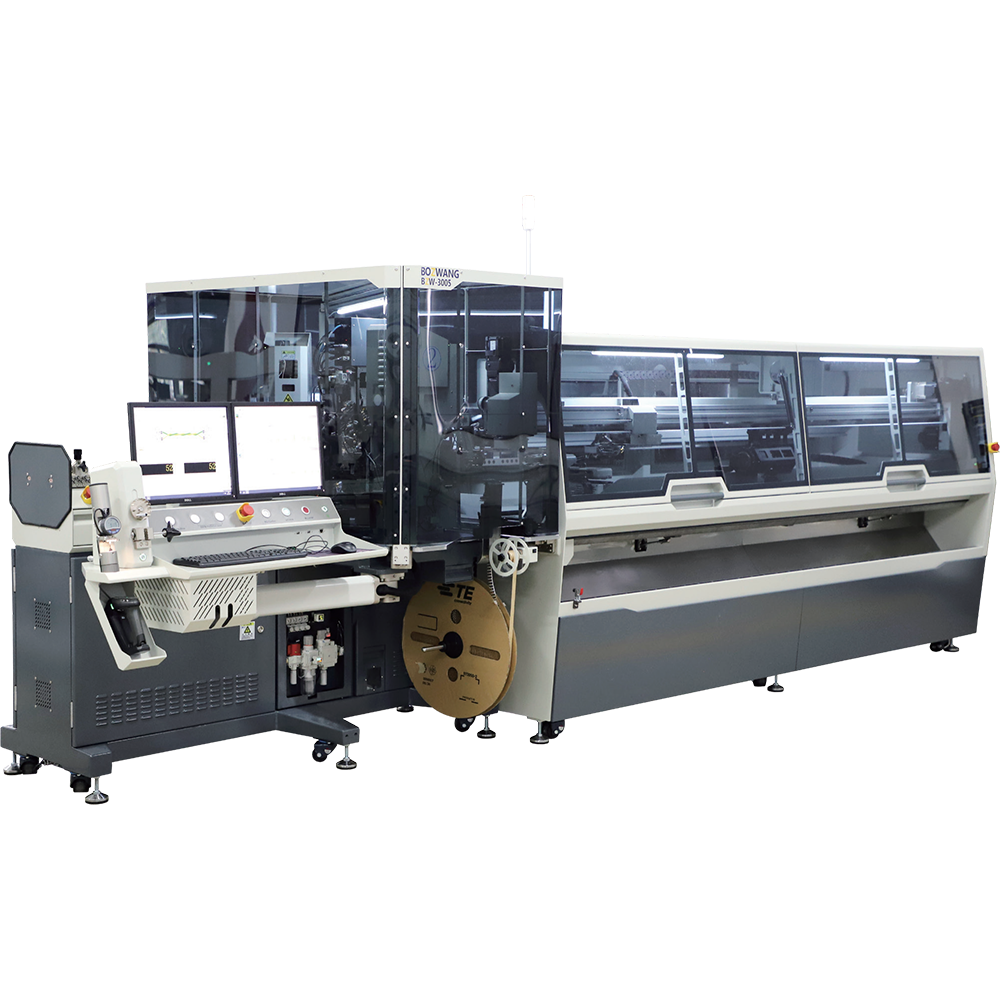

Модель: BZW-3005/3005S
марка: Бозванг
Origin: КИТАЙ
сертификация: ISO9001
The file is encrypted. Please fill in the following information to continue accessing it
| Wire diameter range |
2 × 0.22 mm² – 2 × 2.5 mm²
(AWG 24 – 14)
|
Length range |
300-4000mm
（Optional6m/8m/10m）
|
| Length accuracy | ±（1.0mm+0.3%*L） | Stripping Length | 0.1-15.5mm |
| Opening length | 35-100mm |
One end twisted open
Drop length
|
0-120mm |
| Tape width | 9/19mm | Tape location | 0-80mm（The last pitch is 0） |
| Twisted wire pitch | 5-80±10% | Wire pulling speed | max. 3 m/s |
| Crimping ability | 25KN | Noise | <75dB |
| Power Supply | 3x380V 50Hz 7.0kw | Air supply | 0.5-0.7Mpa |
| Gas consumption | 8-12m³/h | Dimension | L7600 x W2200 x H2000mm |
