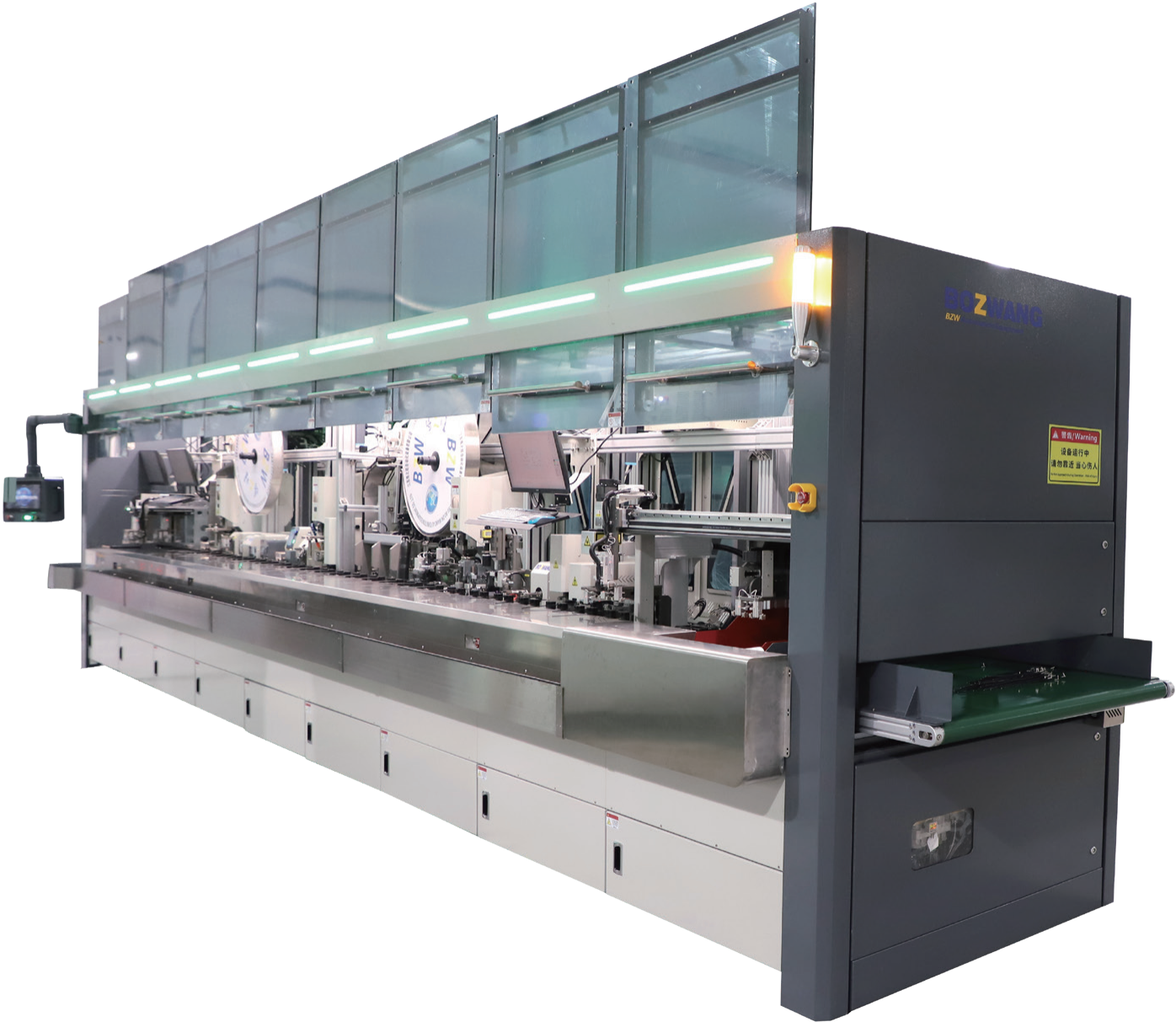

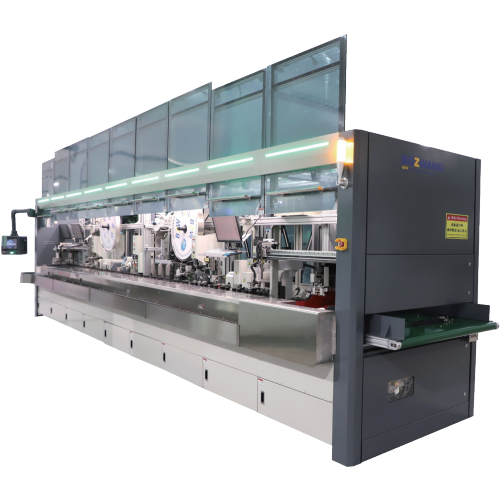

Модель: BZW-6.0FK-RMC
The file is encrypted. Please fill in the following information to continue accessing it
| Wire range | Φ2.8mm-3.2mm | Air supply | 0.4Mpa-0.7Mpa |
| Wire length | 200-10000mm(Other length can be customerized made) | Weight | 9000kg |
| Capacity | 4-5 s/pcs | Dimension | 10000*1100*2250mm |
| Crimping force | 30KN | Inspect | Wire laying inspection, pressure testing, shielding wire inspection, depth inspection, high-voltage testing,air pressure testing, etc. |
| Power supply | 380V 50/60Hz | Applied applicator | European-style molds, pneumatic molds,externally guided custom molds |

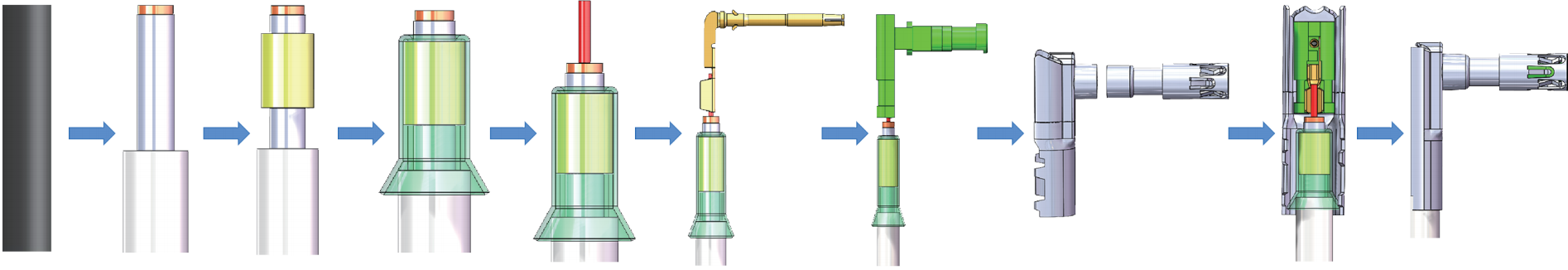

| Function | Manual wiring, sheath stripping, copper ring crimping, half-stripping, shielding wire flipping, aluminum foil stripping and inner insulation stripping, core stripping and zero cutting, center conductor pressing, outer conductor head assembly,outer conductor rubber core assembly, outer conductor assembly, outer conductor crimping, outer conductor crimping detection, high voltage withstand test, interface depth detection, NG analysis and processing, wire take-up(functional configuration can be customized according to requirements) | ||
