| Количество минимального заказа: | 1 |
Оттенок:

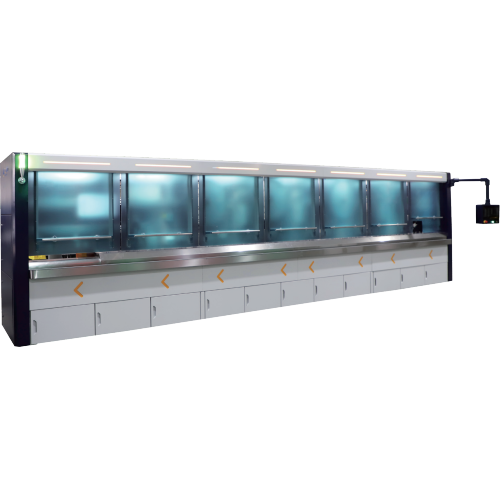

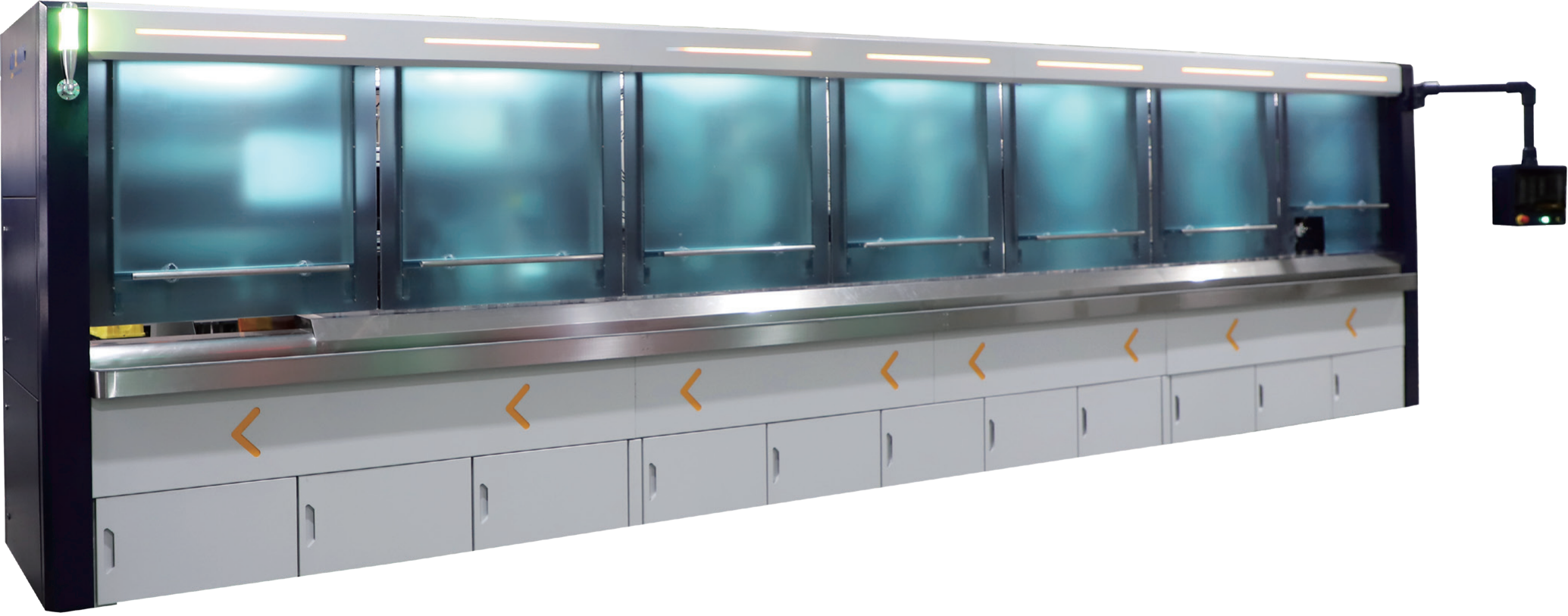

Модель: BZW-6.0FK03
The file is encrypted. Please fill in the following information to continue accessing it
| Wire range | Φ2.8mm-3.3mm | Wire length | 100-10000mm（Other length can be customerized made） |
| Capacity | 4-5 s/pcs | Crimping force | 30KN |
| Power supply | 380V 50/60Hz | Air supply | 0.4Mpa-0.7Mpa，8m³/h |
| Weight | About 3500kg(Depending on the number of custom stations) | Dimension | 7200*1000*2250mm(Depending on the number of custom stations) |
| Inspect | Wire feeding check, crimp pressure check, shield net check, conductivity check, air pressure check. | Applied applicator | OTP applicator, European mechnical applicator and pneumatic applicator |

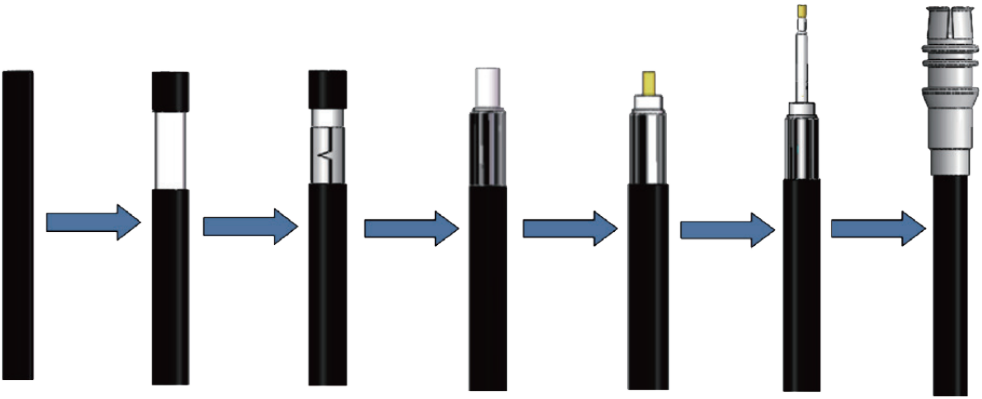

| Function | wire jacket stripping，shield ring crimping，shield net flip, foil stripping, inner conductor stripping and crimping, conductivity inspection, outer conductor crimping, NG check, wire receiving(Other functions can be customized made) | ||
