| Количество минимального заказа: | 1 |
Оттенок:

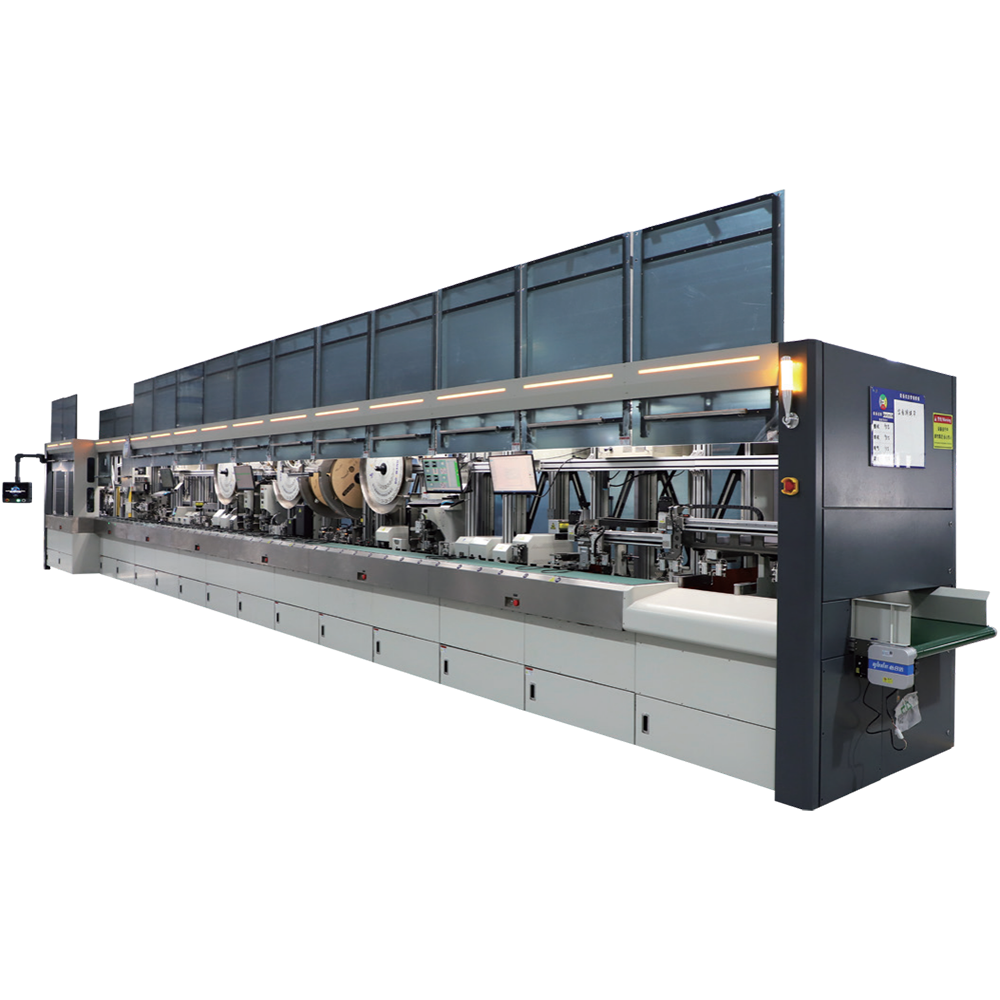

Модель: BZW-6.0THM-RS
марка: Бозванг
Origin: КИТАЙ
сертификация: ISO9001
The file is encrypted. Please fill in the following information to continue accessing it
| Wire range | Φ3.5mm-4.5mm | Air pressure | 0.4Mpa-0.7Mpa |
| Wire length | 150-10000mm（Other length can be customerized made） | Weight | 13000kg |
| Capacity | 5s/pcs single-ended, 10s/pcs double-ended | Dimension | 15000*1280*2250mm(Depending on the number of customized workstations) |
| Crimp force | 30KN | Inspect | wire feed、cable angle detection、crimping check、air pressure inspect |
| Power supply | 380V 50/60Hz 20Kw | Applied applicator | OTP applicator, European mechnical applicator and pneumatic applicator |

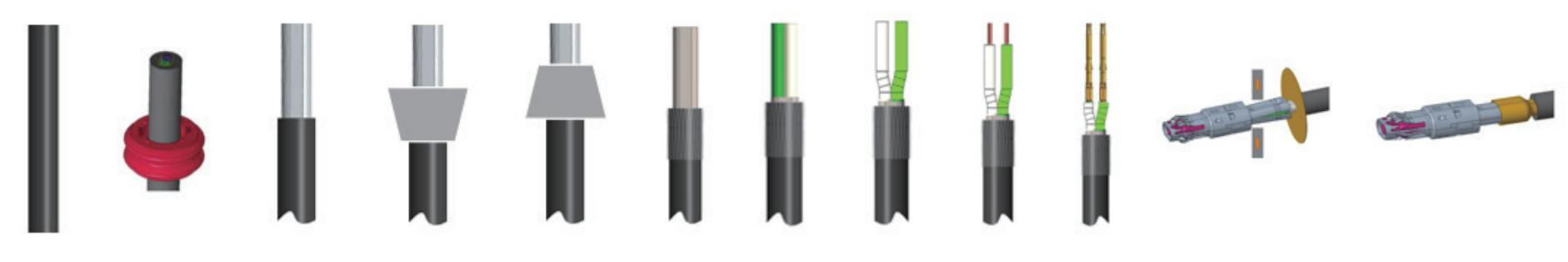

| Function | Automatic looping/manual on-line, waterproof bolt insertion, sheath stripping, shielding wire cutting, shielding wire turning, laser cutting aluminum foil, aluminum foil removal, core wire separation, inner insulation stripping, center conductor crimping, outer conductor insertion, crimping shield ring, outer conductor crimp detection, NG analysis and processing, wire collection (functional configuration can be customized according to requirements) | ||
