| Количество минимального заказа: | 1 |
Оттенок:

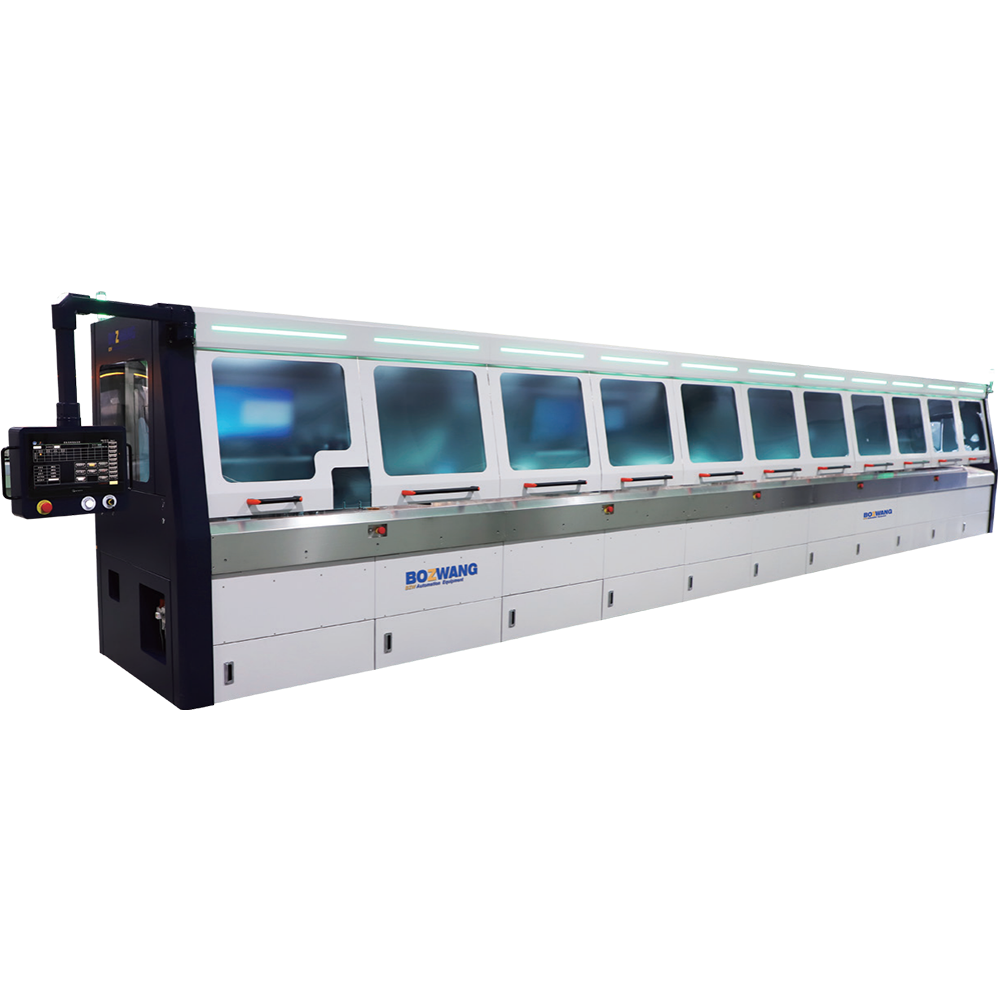

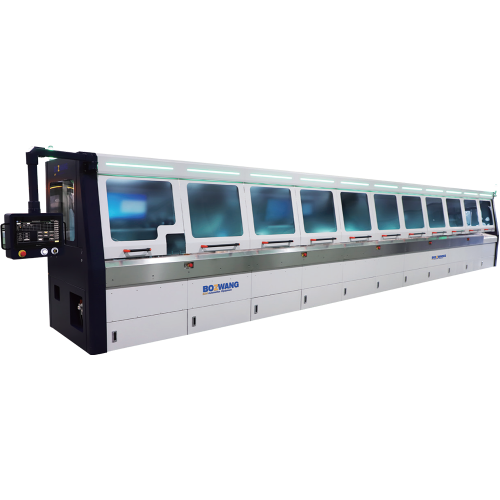

Модель: BZW-6.0HM
марка: Бозванг
Origin: КИТАЙ
сертификация: ISO9001
The file is encrypted. Please fill in the following information to continue accessing it

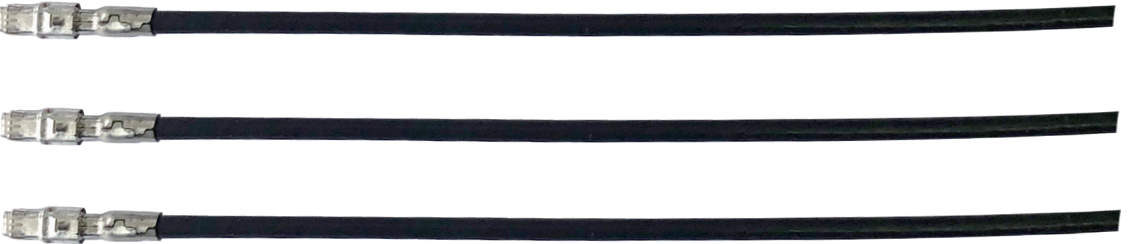

| Wire Sample |
 |
| Wire range | Φ3.5mm-4.5mm | Air pressure | 0.5-0.7Mpa 10m³/h |
| Wire length | 150-10000mm(Other length can be customerized made) | Weight | About 5000kg |
| Capacity | ≤5s/pcs | Dimension | 8500*1100*2400mm |
| Crimp force | 30KN | Inspect | wire feed、cable angle detection、crimping check、air pressure inspect |
| Power supply | 380V 50/60Hz | Applied applicator | OTP applicator, European mechnical applicator and pneumatic applicator |

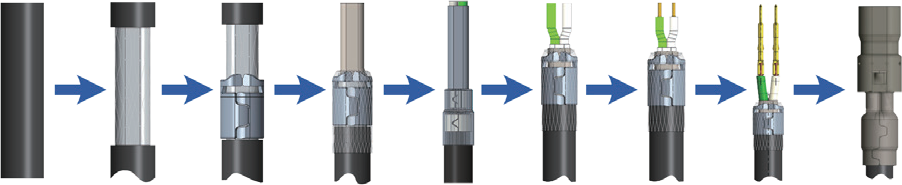

| Function | Pay-off zero cutting、wire jacket stripping、visual inspection of wire、angle adjustment、shield ring crimping、half jacket stripping、flipping shielding wire、inner conductor stripping and crimping、center needle crimping、outer conductor crimping、 coaxial appearance inspection、NG check (it can be customerized made)、wire receiving (it can be customerized made) | ||
